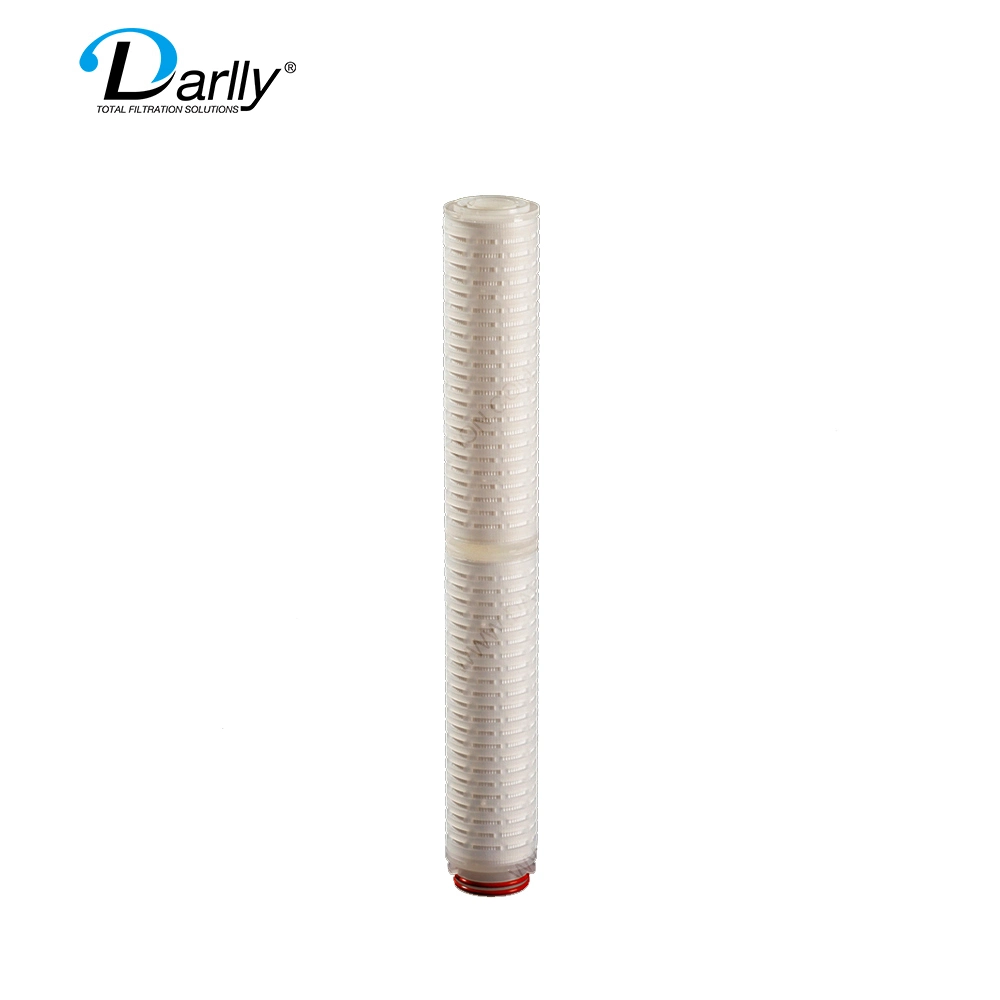

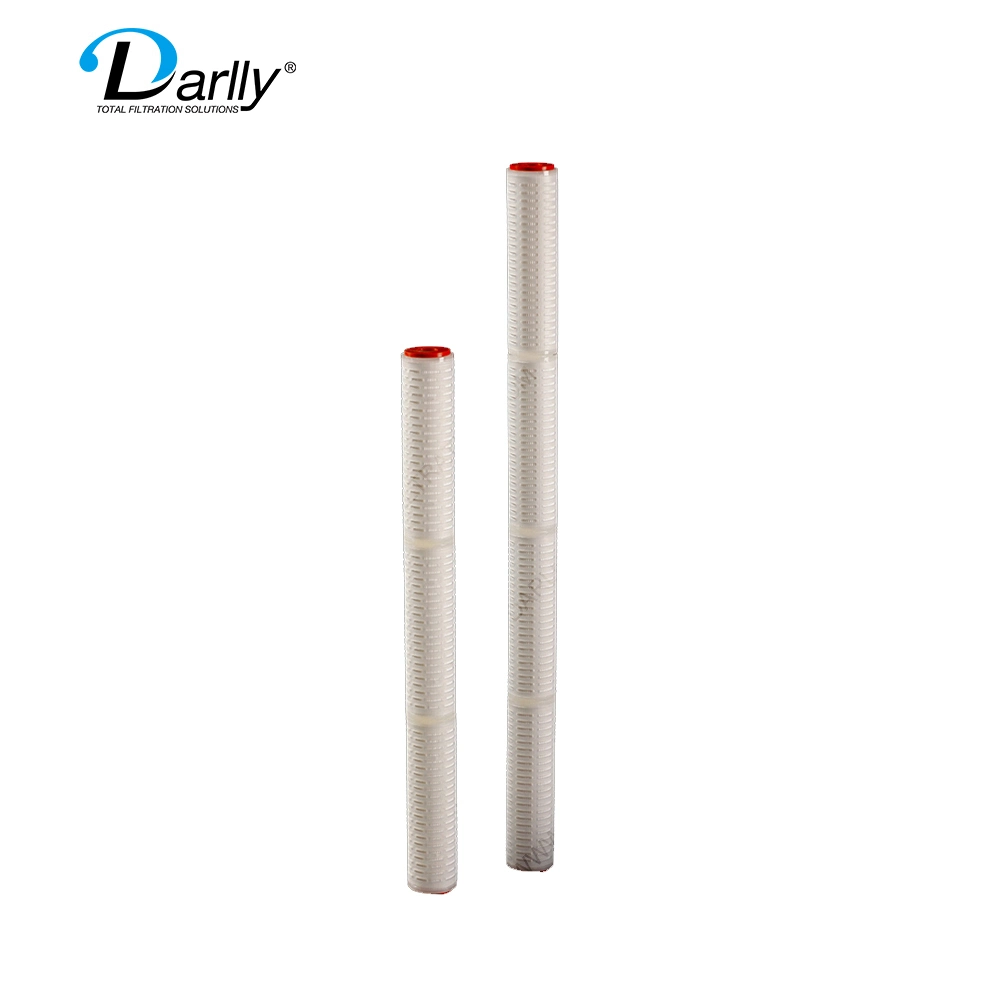

Darlly Pleated PTFE Membrane 0.01um Filter Cartridge Air Filter for Food and Beverage

Product Description :Pharmaceutics Abslute Pleated Fiberglass Cartridge hydrophobic PTFE Air Filter for Prefiltration Pleated filter cartridge_PTFEWPES series is constructed of imported hydrophobic membrane media and nonwoven support materials. The materials of cage, core and end caps are polypropylene. Adaptors are thermal

Featured Products

Darlly Pleated PTFE Membrane 0.01um Filter Cartridge Air Filter for Food and Beverage

Product Description :Pharmaceutics Abslute Pleated Fiberglass Cartridge hydrophobic PTFE Air Filter for Prefiltration
Pleated filter cartridge_PTFE

WPES series is constructed of imported hydrophobic membrane media and nonwoven support materials. The materials of cage, core and end caps are polypropylene. Adaptors are thermally welded with media, so there is no possibility to cause pollution.

Features
Excellent performance of chemical compatibility
Hydrophillc membrane with high flow
Non-fiber releasing according to pharmaceutics and food industry requirements
Experiencing 100% integrity tested
Flushed with ultrapure water

Applications
Pharmaceutics
Food and beverage
Chemical industry

Specifications
Removal rating: 0.01um,0.1um,0.22um,0.45um,0.65um,1.2um
Length: 10'', 20'', 30'', 40''
Outside diameter: 69mm, 83mm, 131mm
Maximum operating temperature: 85temperature
Maximum operating pressure: 4.2bar @25temperature
Maximum operating pressure (Reverse Direction): 2.1bar @ 25temperature
Maximum temperature sterilization: 20times, 30minutes cycles at 121temperature

Flow Rate vs. Differential Pressure

Order Information:

For example:
DLMPES-0022-10-III-S
PES, Rating: 0.22um, Length: 10", -222 flat end, seal material: Silicone.
