Water purification 5 micron filter SS304 316L aqua bag filter housing with single PP PE Nylon bag steel filter (18x32 inch):
1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products,
high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.
Models & Specifications:
Product View:
Single-cartridge filter housing:
Multi-cartridge filter housing:

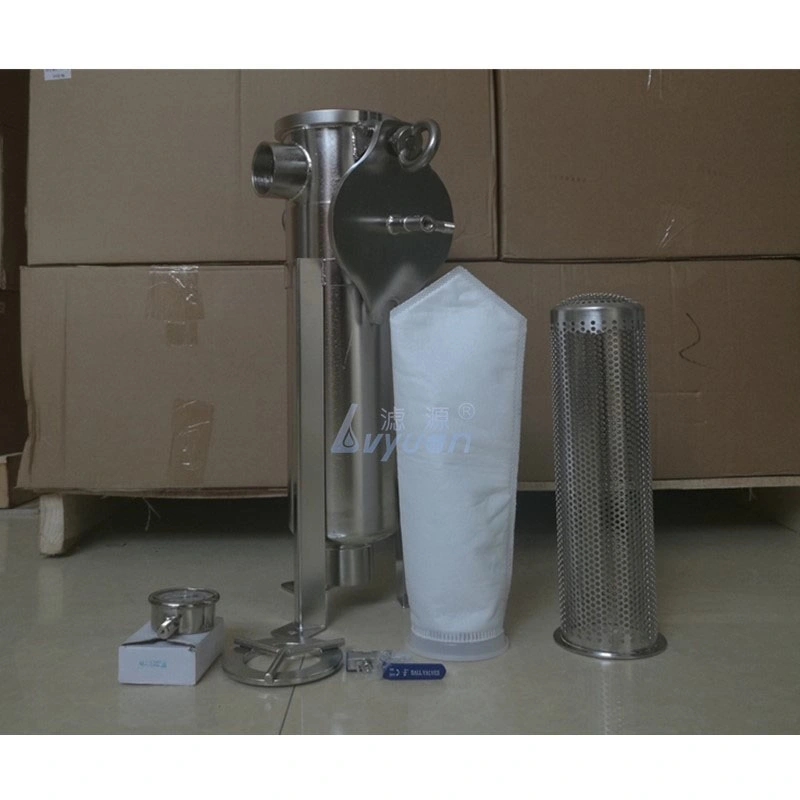

Single-bag filter housing:
Different models selection:
OEM customized service are available,
Pls clik below "send" to us your inquiry details. Thank you very much !
1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products,
high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.
| Housing material | SUS304/316L |
| Bag material | PP/PE/Nylon |
| In & out connection | Flange/Thread 3/4" to 2.5" |
| Seal material | EPDM/Silicone/Viton/PTFE |
| Surface treatment | Polished/Sandblast |
| Working temp. | 20~120 degree |
| Max. working pressure | 0.75-1.6Mpa |
| Bag Item | Flow Rate(m³/h) | Filtration area(m²) | Length(mm) | Bag Diameter(mm) |
| #1 | 20 | 0.25 | 410(16") | 180(7") |
| #2 | 40 | 0.5 | 810(32") | 180(7") |
| #3 | 6 | 0.1 | 210(8.25") | 102(4") |
| #4 | 12 | 0.15 | 356(14") | 102(4") |
| #5 | 25 | 0.3 | 870(34") | 175(6, 7/8") |
Models & Specifications:
Product View:
Single-cartridge filter housing:
Multi-cartridge filter housing:
Single-bag filter housing:
Different models selection:
OEM customized service are available,
Pls clik below "send" to us your inquiry details. Thank you very much !
