• Beautiful deign with brand display mark
• Screw Fixing type
• Easy to open cover and fast change mat inside
• Conform to CE-EMC, CE-LVD
• Can offer IP54 or IP55 to choose, use indoor and outdoor
• Normal color is RAL 7035, also can be customer made for color with MOQ
• Same Size Filter can offer different Airflow Volumn requirement

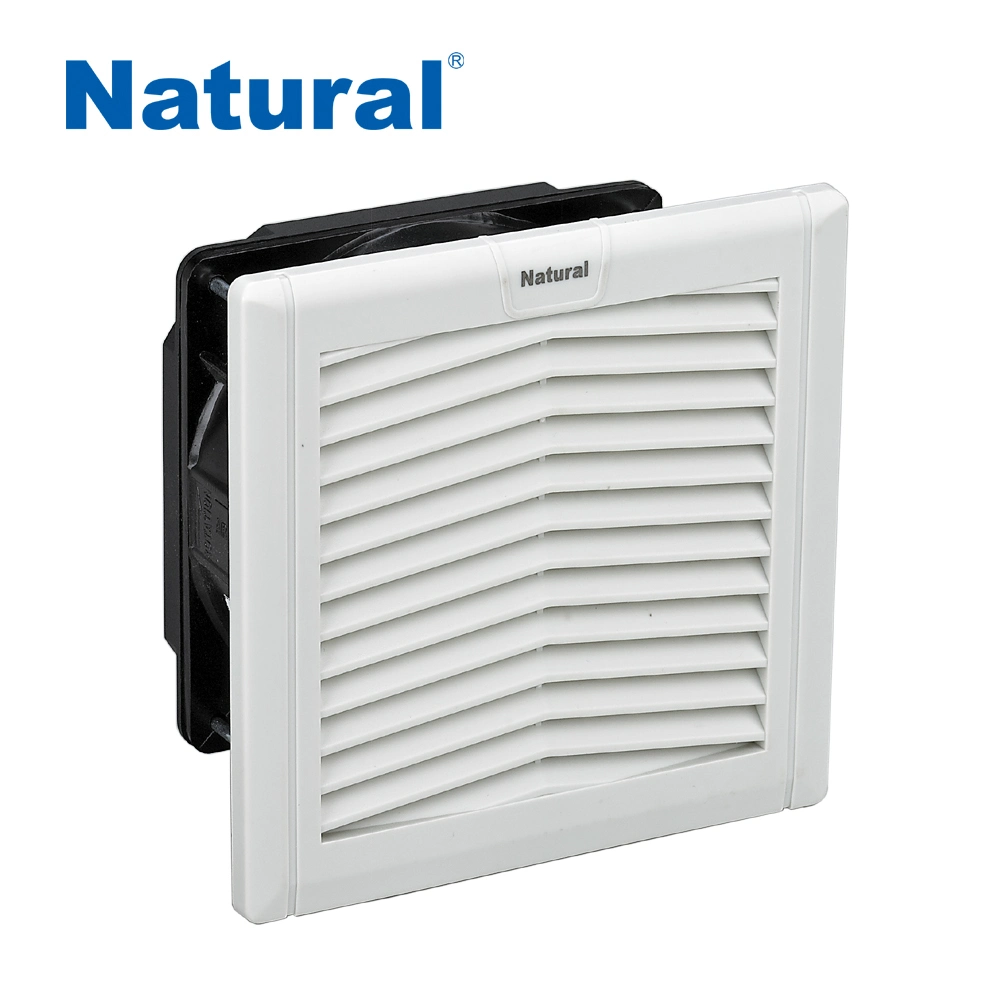

Fan filters are used to provide an optimum climate in enclosures and cabinets with electrical/electronic components.
The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure
thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and
protects electronic components from overheating.
The Fan filter series uses a new air-flap outlet technology for the air outlet and thus reaches a high degree of airflow. A
ratchet mechanism is used for mounting and provides high stability and tightness. The system is a standard installation
with a filter fan in the lower part of the enclosure which ensures that fresh air is fed into the enclosure (airflow direction
"In"). This system consists of a filter fan and exit filter.
• Screw Fixing type
• Easy to open cover and fast change mat inside
• Conform to CE-EMC, CE-LVD
• Can offer IP54 or IP55 to choose, use indoor and outdoor
• Normal color is RAL 7035, also can be customer made for color with MOQ
• Same Size Filter can offer different Airflow Volumn requirement
Fan filters are used to provide an optimum climate in enclosures and cabinets with electrical/electronic components.
The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure
thus expelling heated internal air. The resulting airflow prevents formation of localised hot pockets in installations and
protects electronic components from overheating.
The Fan filter series uses a new air-flap outlet technology for the air outlet and thus reaches a high degree of airflow. A
ratchet mechanism is used for mounting and provides high stability and tightness. The system is a standard installation
with a filter fan in the lower part of the enclosure which ensures that fresh air is fed into the enclosure (airflow direction
"In"). This system consists of a filter fan and exit filter.
NTL-FF152 | |
Axial fan, ball bearing | service life L10 at +40°C (+104°F): min. 37,000h fan body aluminium, rotor metal |
Connection | 2 stranded wires, 160mm |
Casing, hood, flaps | plastic according to RoHS |
Enclosure cut-out | 125 x 125mm |
Mounting frame | Screw Fixing Type, Easy to open the cover. |
Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
Filter material | synthetic fibre with progressive construction,temperature resistant to +100°C, self-extinguishing class F1,moisture resistant to 100% RH, reusable |
Operating/Storage temperature | -40 to +70°C (-40 to +158°F) |
Operating/Storage humidity | max. 90% RH (non-condensing) |
Protection type/Protection class | IP54 / I (earthed) |
Note | other voltages on request |
