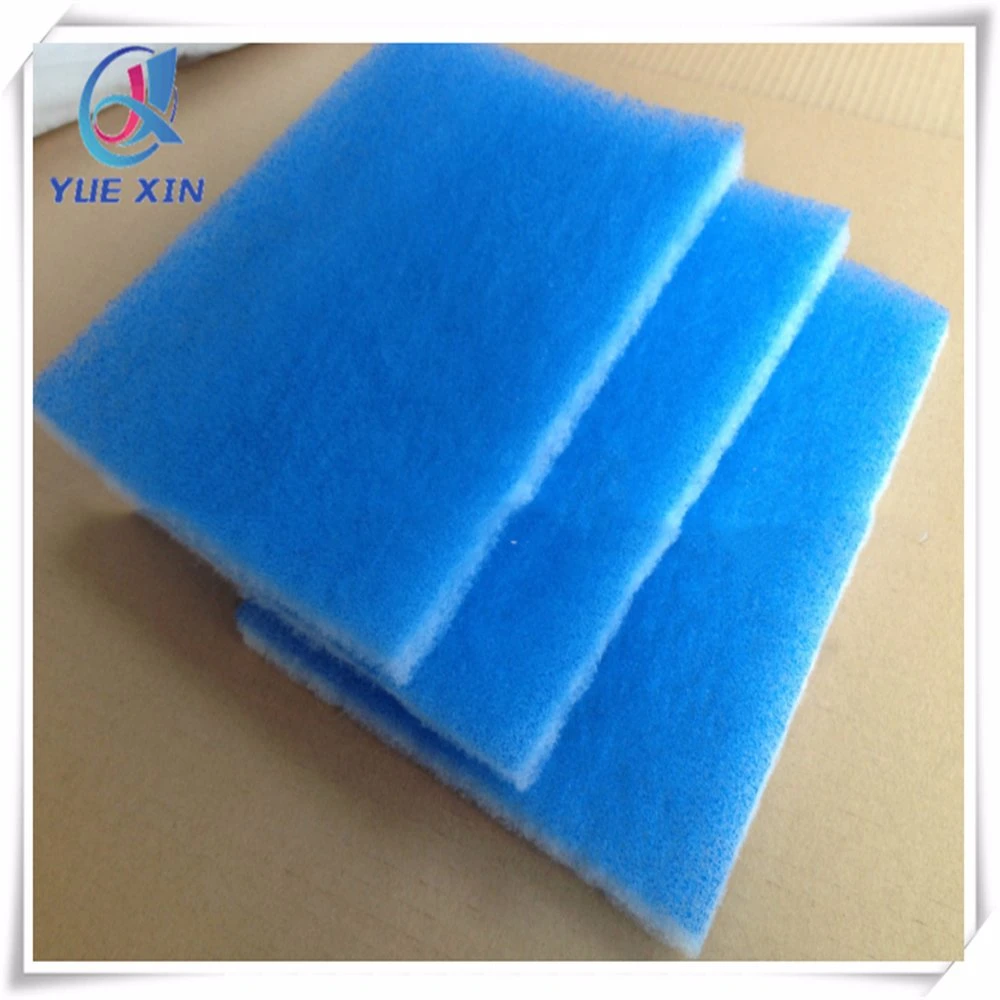

Blue and white pre-filter cotton air filter material with glue

Blue and white pre-filter cotton air filter material with glue Specification:TypeDimensionsRated air velocity(m/s)Initial pressure drop (Pa)Rated air flow(m2/h) Length(m)Width(m)Thickness(mm)   Rolls201/215 ± 21.5205400  Advantages:·Was

Featured Products


Blue and white pre-filter cotton air filter material with glue




Specification:

Type

Dimensions

Rated air velocity(m/s)

Initial pressure drop (Pa)

Rated air flow(m2/h)



Length(m)

Width(m)

Thickness(mm)







Rolls

20

1/2

15 ± 2

1.5

20

5400





Advantages:

·Washable and reusable

·Low initial  resistance

·Large dust holding capacity

·Flexible

·Economical and practica





Application: ≥5μm, Filter dust , (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program



pre-filter through air filter program

Type: supply pads or rolls size

Media: synthetic fiber with gradual density



Average arrestance:91%(ASHRAE52.1-1992)



EUROVENT4/5 class: EU4



DIN53438 Non-flammability Standard: F1



Final resistance: (suggested) 200Pa-250Pa



Temp. resistance: 100ºC



Data sheet

1.Application: ≥5μm, Filter dust , (especially used in the train or the subway, where the place has air-conditioner), pre-filter through air filter program

2.Type: supply pads or rolls size

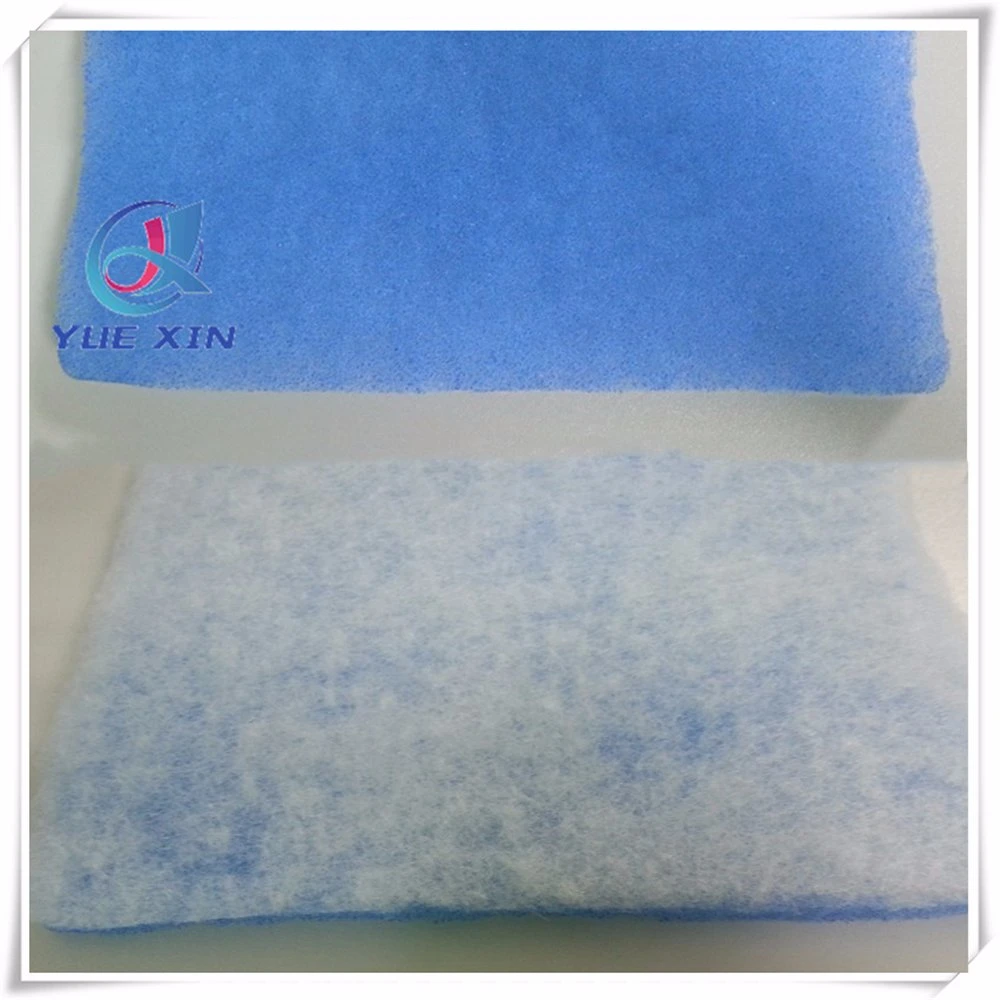

3.Media: synthetic fiber with gradual density, inlet side is blue.

4.Washable: about 4-5 times

5.EN779 class: G3

6.Average arrestance:88%(ASHRAE52.1-1992)

7.EUROVENT4/5 class: EU3

8.DIN53438  Non-flammability Standard: F1

9.Final resistance:  (suggested) 150Pa-250Pa

10.Max. Dust holding capacity: 520g/sqm


Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue



Packing Details,
 1. Compressed package:single packing: 1pcs/polybag; 30pcs/ctn; ctn size: 80x45x45cm; N.W./G.W:2.5/32.5kg;
 2. uncompressed package:single packing:1pcs/polybag;10pcs/ctn; ctn size:65x45x45cm; N.W./G.W:2.5/26.5kg;
 3. Or Customized Individual Request;
Blue and White Pre-Filter Cotton Air Filter Material with Glue
Blue and White Pre-Filter Cotton Air Filter Material with Glue

Shipping,
1. Express Shipping: DHL; UPS; Fed-Ex,TNT Or SF Express;
2. Sea Boat Shipping: Accept Fob term, CIF term;
3. Airplane Shipping: Accept Fob term, CIF term;

Our Services

Your reply will be replied within 12 hours.

We offer you professional service in fluent English.

Keep the mass production as the sample  approved

Freight forwarder: faster, safer, and convenient.

Samples charge: free
Blue and White Pre-Filter Cotton Air Filter Material with Glue
