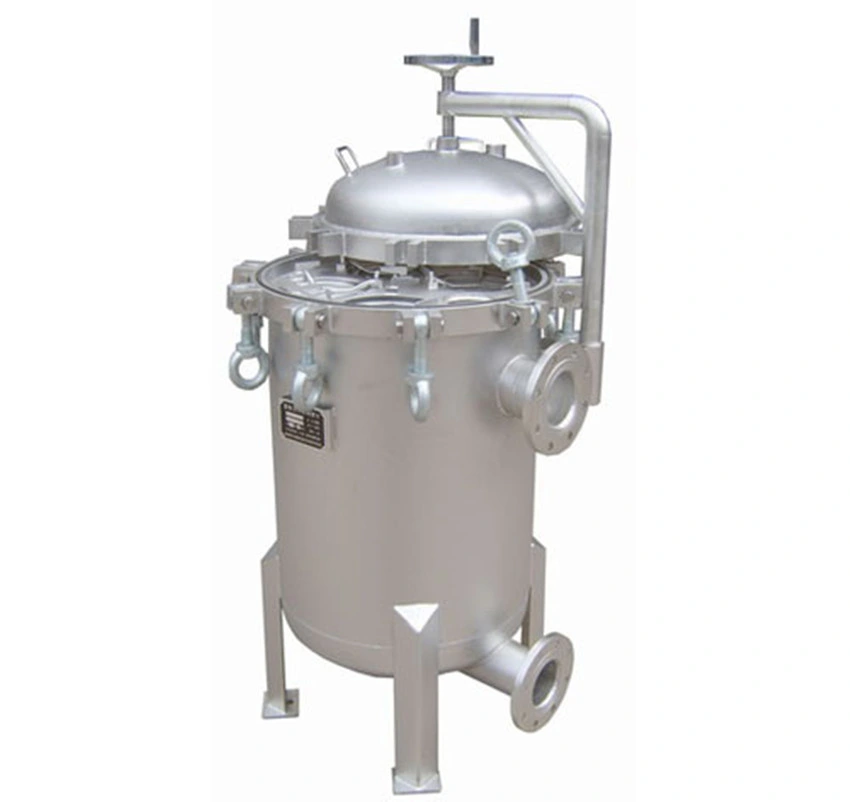

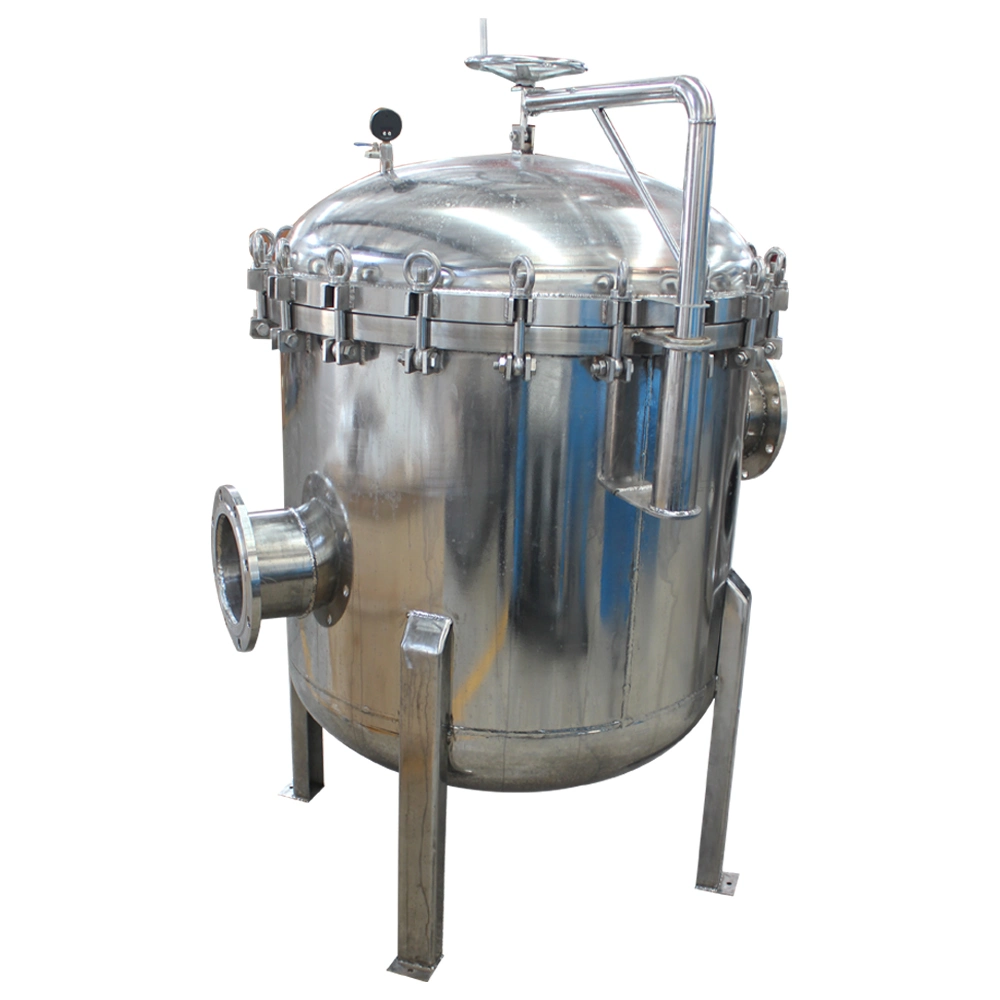

100 Micron Fine Filtration Bag Filter For Lubricating Oils Filtration
Working principle
Within the bag filter, under the action of pressure, the solution flows through the filter bag, the pollutants intercepted and the filtered residue will stranded in the bag. while the filtrate outflows along the metal bearing baskets wall, achieving the purpose of filtration.
Major advantages
Low side leakage probability of the filter bag, ensuring the quality of filtration
Bag filter could bear greater pressure but with less pressure loss, obvious energy-saving effect but low running cost
The filtration precision of bag filter is continuously improved and now reaches 0.5 pm.
The bag filter has large capacity, small size and large amount of pollutant.
Based on the working principle and structure of bag filter system, the filter bag can be replaced conveniently and the filter is free for cleaning, saving time and labor.
The filter bag can be used repeatedly after cleaning, saving cost.
Bag filter is used widely and flexibly and it can be installed in many ways.
Scope of application
Paint, beer, vegetable oil, pharmaceuticals, chemicals, petroleum products, textile chemicals, photographic chemicals, plating solution, milk, mineral water, hot solvent, latex, industrial water, sugar water, resins, inks, industrial waste water, fruit juice, edible oil and wax , etc.
01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.
02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .
03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.
04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.
05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.
06.Filtration bag could be use repeated after cleaning to save cost.
07.Bag filter application scope is broad, with flexible operation and multiple installation
AAA:
01. What is the capacity (m3/hour)you required for this equipment?
02. What is the material for this bag filter?
Stainless steel (SS304/SS316)?
03. What is the working pressure for it?
04. What is the filtration degree?
10 micron or 200 micron?
Model | Flow rate (T/H) | inlet and outlet diameter | Quantity of the bags | Filter size | Bag Specifications | Filtration Area (M2) |
YL-1-219 | 20 | DN50mm | 1 | 219*410 | 180*410 | 0.23 |
YL-2-219 | 40 | DN65mm | 1 | 219*810 | 180*410 | 0.46 |
YL-2-450 | 50-80 | DN80mm | 2 | 400*810 | 180*810 | 0.92 |
YL-2-500 | 120 | DN100mm | 3 | 500*810 | 180*810 | 1.38 |
YL-2-550 | 140 | DN100mm | 4 | 550*810 | 180*810 | 1.8 |
YL-2-600 | 150 | DN125mm | 4 | 600*810 | 180*810 | 1.8 |
YL-2-650 | 160 | DN125mm | 5 | 650*810 | 180*810 | 1.84 |
YL-2-750 | 200 | DN150mm | 6 | 750*810 | 180*810 | 2.3 |
YL-2-800 | 220 | DN100mm | 8 | 800*810 | 180*810 | 2.5 |
YL-2-850 | 240 | DN200mm | 9 | 850*810 | 180*810 | 2.76 |
